Model

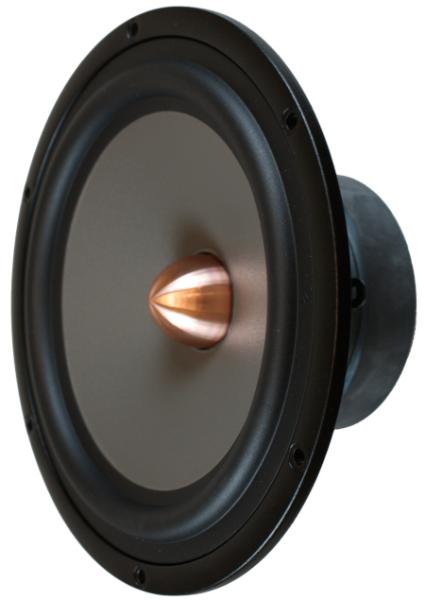

Seas W22NX001
Rating
DIAM
8"
FS(Hz)
25
VAS(l)
93
QTS
0.39
PWR(W)
500
SPL(dB)
87
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
93
Qts
0.39
Qms
4.2
Qes
0.44
Bl(Tm)
8.3
Mms(gr)
31
Cms(mm/N)
1.35
Rms(kg/s)
1.15
Le(mH)
0.26
Re(Ohm)
6.3
Sd(sq.mm)
22000
Vd(l)
0.154
X-max(mm)
7
X-mech(mm)
10
General Parameters
Diameter (inch)
8
Max Power(W.)
500
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
88.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
220
Cutout Diameter (mm)
187
Mounting Depth (mm)
93
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
