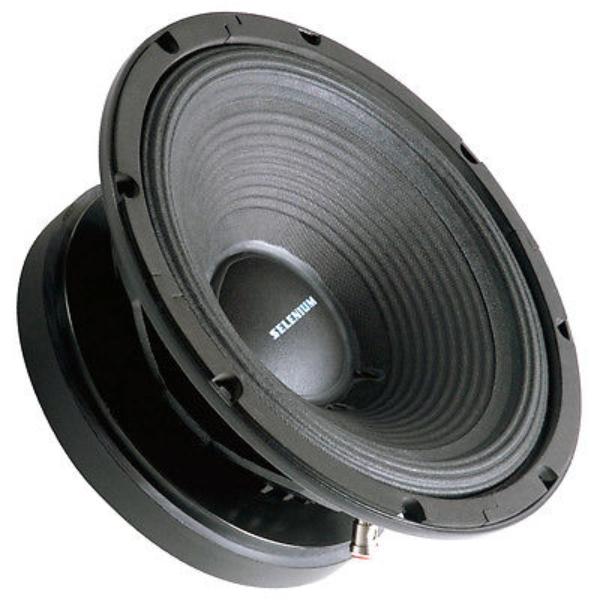

Model
Selenium 10MB3P
Rating
DIAM
10"
FS(Hz)
80
VAS(l)
23
QTS
0.46
PWR(W)
600
SPL(dB)
95.8
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
80
Vas(l)
23
Qts
0.46
Qms
16.45
Qes
0.473
Bl(Tm)
13.6
Mms(gr)
33
Cms(mm/N)
0.121
Rms(kg/s)
1.002
Le(mH)
0
Re(Ohm)
5.3
Sd(sq.mm)
36300
Vd(l)
0.218
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
229
Mounting Depth (mm)
108
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Vented, BP6P
