Model

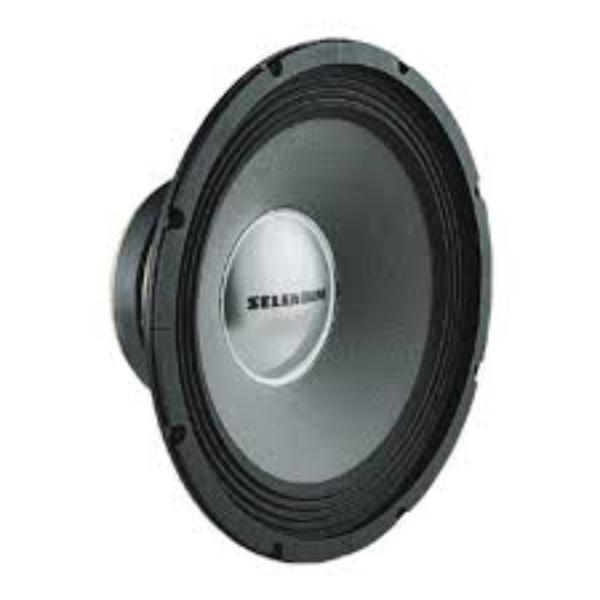

Selenium 12PW3
Rating
DIAM
12"
FS(Hz)
50
VAS(l)
97
QTS
0.69
PWR(W)
400
SPL(dB)
93.9
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
50
Vas(l)
97
Qts
0.69
Qms
7.95
Qes
0.756
Bl(Tm)
9.9
Mms(gr)
37
Cms(mm/N)
0.275
Rms(kg/s)
1.458
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
51000
Vd(l)
0.064
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.8
Total Diameter (mm)
0
Cutout Diameter (mm)
278
Mounting Depth (mm)
113
Magnet Diameter (mm)
147
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
