Model

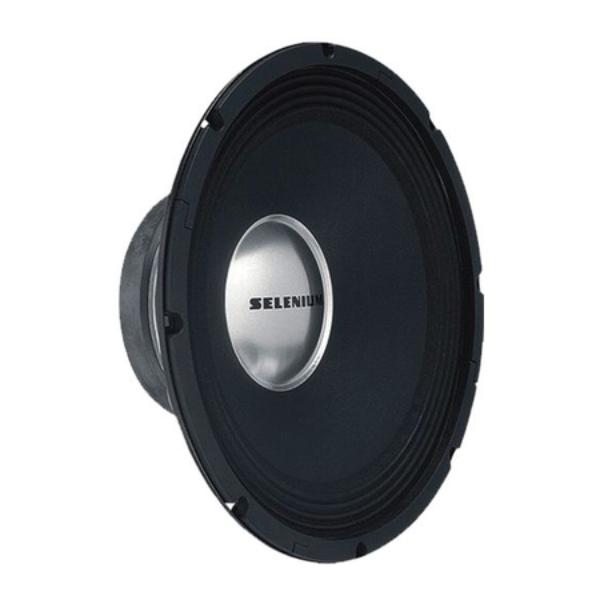

Selenium 15PW3
Rating
DIAM
15"
FS(Hz)
37
VAS(l)
274
QTS
0.61
PWR(W)
500
SPL(dB)
94.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
274
Qts
0.61
Qms
5.81
Qes
0.682
Bl(Tm)
12.3
Mms(gr)
71
Cms(mm/N)
0.26
Rms(kg/s)
2.849
Le(mH)
0.929
Re(Ohm)
6.2
Sd(sq.mm)
86201
Vd(l)
0.259
X-max(mm)
3
X-mech(mm)
10
General Parameters
Diameter (inch)
15
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.96
Sensitivity(dB) 1-W
94.9
Sensitivity(dB) 2.8-V
96
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
381
Cutout Diameter (mm)
350
Mounting Depth (mm)
139
Magnet Diameter (mm)
169
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
