Model

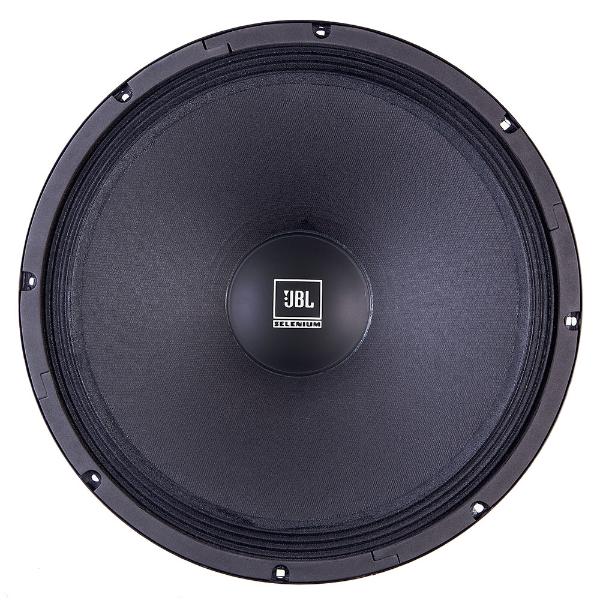

Selenium 15PW7
Rating
DIAM
15"
FS(Hz)
43
VAS(l)
152
QTS
0.66
PWR(W)
1000
SPL(dB)
93.6
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
43
Vas(l)
152
Qts
0.66
Qms
3.6
Qes
0.81
Bl(Tm)
12.8
Mms(gr)
86
Cms(mm/N)
0.152
Rms(kg/s)
1.9
Le(mH)
1.08
Re(Ohm)
5.6
Sd(sq.mm)
86100
Vd(l)
0.258
X-max(mm)
3
X-mech(mm)
15
General Parameters
Diameter (inch)
15
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.44
Sensitivity(dB) 1-W
93.6
Sensitivity(dB) 2.8-V
95.1
Mounting Information
Speaker Displacement (l)
2.91
Total Diameter (mm)
381
Cutout Diameter (mm)
350
Mounting Depth (mm)
139
Magnet Diameter (mm)
169
Optimum Enclosures
Enclosures
Closed, BP4
