Model

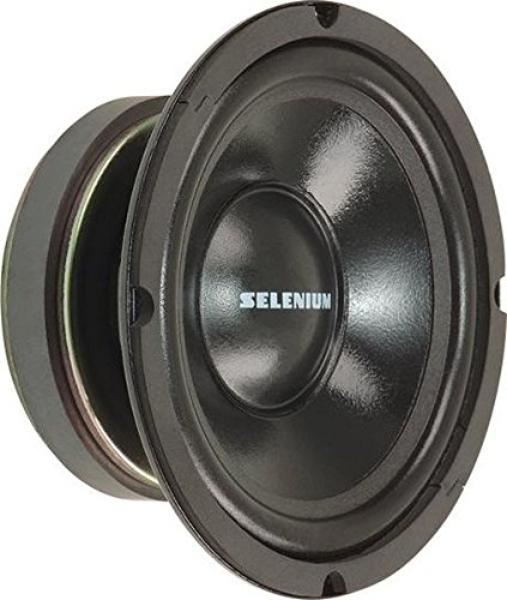

Selenium 6W4P
Rating
DIAM
6"
FS(Hz)
76
VAS(l)
8
QTS
0.83
PWR(W)
200
SPL(dB)
87.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
76
Vas(l)
8
Qts
0.83
Qms
6.7
Qes
0.95
Bl(Tm)
13.3
Mms(gr)
44
Cms(mm/N)
0.1
Rms(kg/s)
3.13
Le(mH)
0.569
Re(Ohm)
8
Sd(sq.mm)
23800
Vd(l)
0.055
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
87.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
166
Cutout Diameter (mm)
143
Mounting Depth (mm)
74
Magnet Diameter (mm)
115
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
