Model

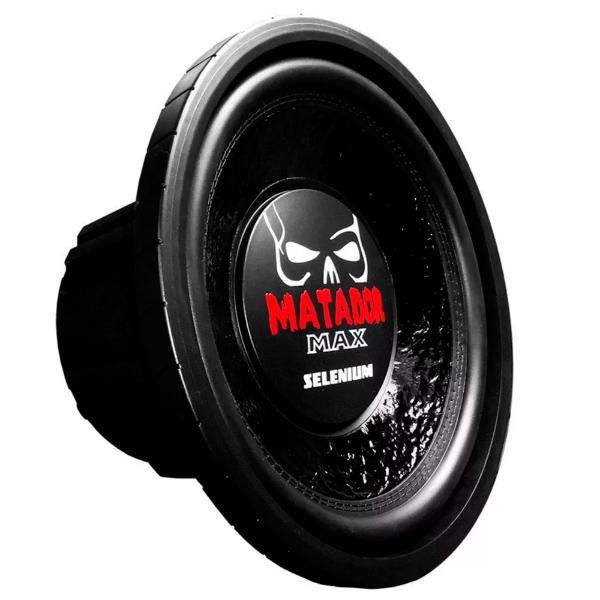

Selenium MATADOR MAX 15SW12A
Rating
DIAM
15"
FS(Hz)
30.8
VAS(l)
160.4
QTS
0.63
PWR(W)
1600
SPL(dB)
90.2
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.8
Vas(l)
160.4
Qts
0.63
Qms
8.2
Qes
0.69
Bl(Tm)
12.3
Mms(gr)
153
Cms(mm/N)
0.175
Rms(kg/s)
3.601
Le(mH)
2.74
Re(Ohm)
3.5
Sd(sq.mm)
83000
Vd(l)
0.477
X-max(mm)
6
X-mech(mm)
28
General Parameters
Diameter (inch)
15
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.65
Sensitivity(dB) 1-W
90.2
Sensitivity(dB) 2.8-V
93.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
384
Cutout Diameter (mm)
350
Mounting Depth (mm)
200
Magnet Diameter (mm)
181
Optimum Enclosures
Enclosures
Closed, BP4
