Model

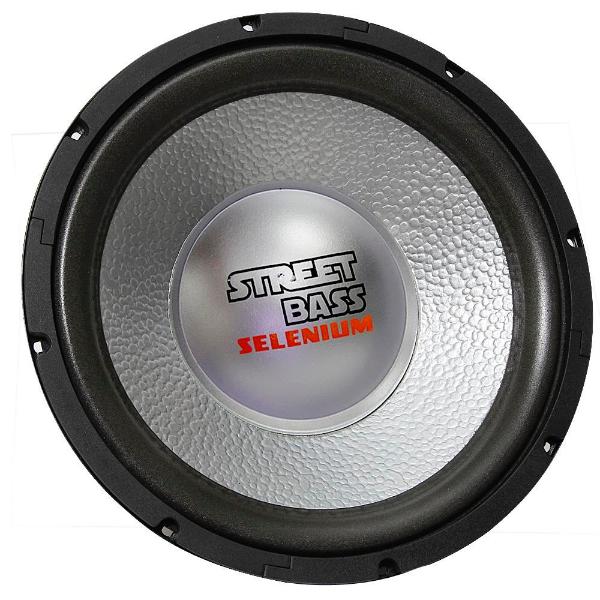

Selenium STREET BASS 12W2A
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
164
QTS
0.46
PWR(W)
500
SPL(dB)
91.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
164
Qts
0.46
Qms
11.09
Qes
0.48
Bl(Tm)
9.9
Mms(gr)
75
Cms(mm/N)
0.374
Rms(kg/s)
1.28
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
55600
Vd(l)
0.208
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
115
Magnet Diameter (mm)
176
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
