Model

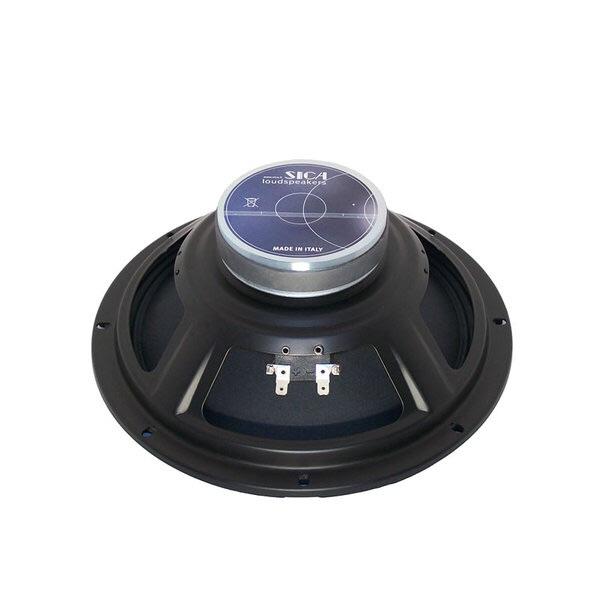

Sica 10 D 1 CS
Rating
DIAM
10"
FS(Hz)
76.1
VAS(l)
43.9
QTS
1.56
PWR(W)
120
SPL(dB)
92.4
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
76.1
Vas(l)
43.9
Qts
1.56
Qms
19.5
Qes
1.7
Bl(Tm)
5.4
Mms(gr)
15
Cms(mm/N)
0.288
Rms(kg/s)
0.37
Le(mH)
0.45
Re(Ohm)
6.9
Sd(sq.mm)
32784
Vd(l)
0.049
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.1
Sensitivity(dB) 1-W
92.4
Sensitivity(dB) 2.8-V
93
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
266
Cutout Diameter (mm)
235
Mounting Depth (mm)
90
Magnet Diameter (mm)
86
Optimum Enclosures
Enclosures
BP4, Closed
