Model

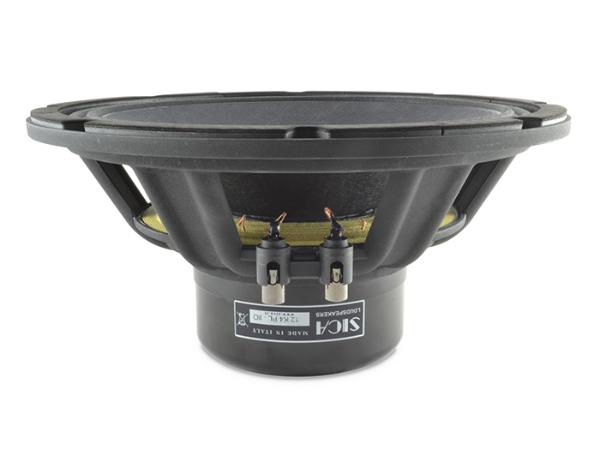

Sica 12 K 4 PL 2000W
Rating
DIAM
12"
FS(Hz)
48
VAS(l)
46.3
QTS
0.24
PWR(W)
2000
SPL(dB)
94.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
46.3
Qts
0.24
Qms
4.41
Qes
0.254
Bl(Tm)
24.7
Mms(gr)
94
Cms(mm/N)
0.117
Rms(kg/s)
6.401
Le(mH)
0.74
Re(Ohm)
5.5
Sd(sq.mm)
53090
Vd(l)
0.372
X-max(mm)
7
X-mech(mm)
9
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.94
Sensitivity(dB) 1-W
94.9
Sensitivity(dB) 2.8-V
96.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
320
Cutout Diameter (mm)
282
Mounting Depth (mm)
144
Magnet Diameter (mm)
135
Optimum Enclosures
Enclosures
BP6P, Vented
