Model

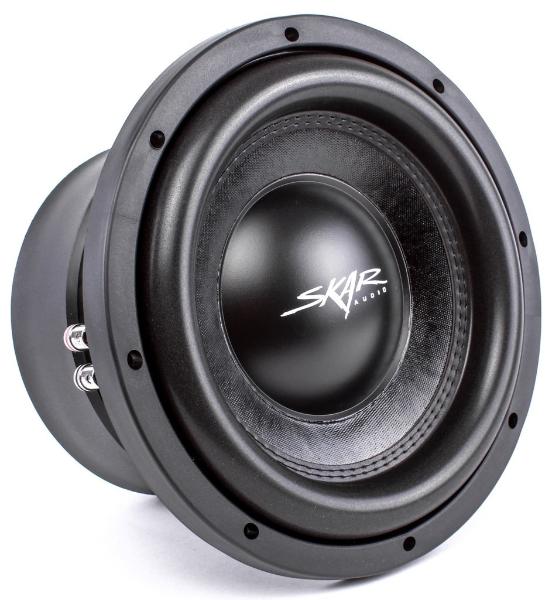

Skar DDX-10 D4
Rating
DIAM
10"
FS(Hz)
48
VAS(l)
8.7
QTS
0.53
PWR(W)
1500
SPL(dB)
83.9
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
8.7
Qts
0.53
Qms
4.6
Qes
0.599
Bl(Tm)
27.1
Mms(gr)
210
Cms(mm/N)
0.052
Rms(kg/s)
13.768
Le(mH)
0
Re(Ohm)
7
Sd(sq.mm)
33980
Vd(l)
0.51
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
155
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
