Model

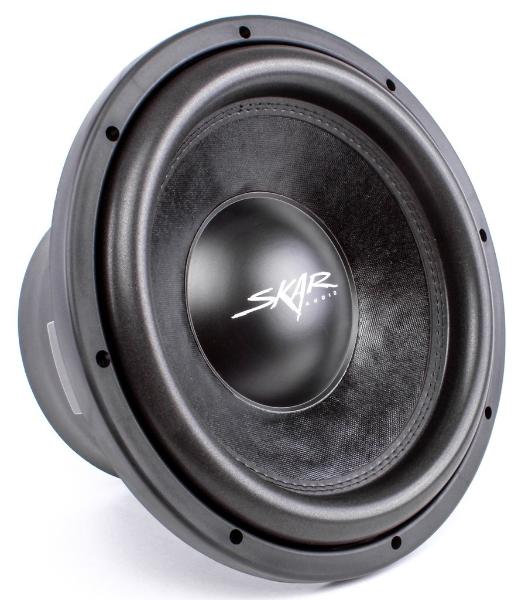

Skar DDX-12 D2
Rating
DIAM
12"
FS(Hz)
39
VAS(l)
24.8
QTS
0.34
PWR(W)
1500
SPL(dB)
87.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
24.8
Qts
0.34
Qms
4.1
Qes
0.371
Bl(Tm)
25.5
Mms(gr)
243
Cms(mm/N)
0.069
Rms(kg/s)
14.523
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
51000
Vd(l)
0.765
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.247
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
168
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Vented, BP6
