Model

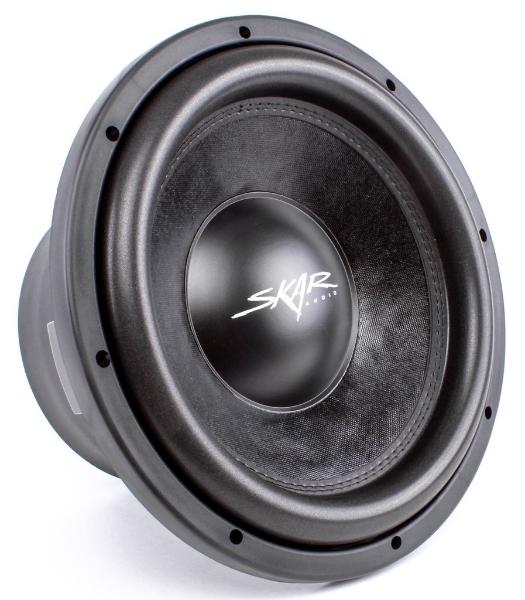

Skar DDX-12 D4
Rating
DIAM
12"
FS(Hz)
39
VAS(l)
25.9
QTS
0.37
PWR(W)
1500
SPL(dB)
87.6
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
25.9
Qts
0.37
Qms
3.9
Qes
0.41
Bl(Tm)
31.8
Mms(gr)
235
Cms(mm/N)
0.07
Rms(kg/s)
14.735
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
51000
Vd(l)
0.777
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.247
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
168
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Vented, BP6
