Model

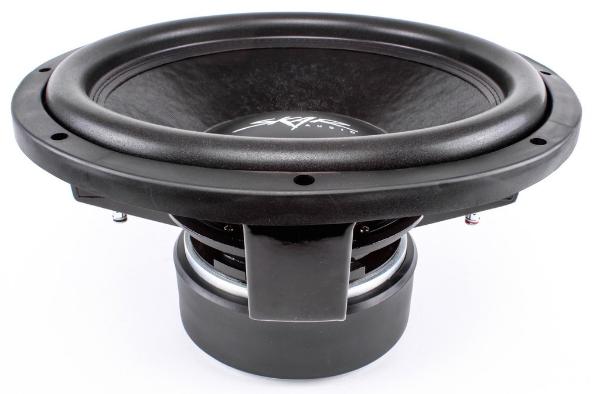

Skar DDX-15 D4
Rating
DIAM
15"
FS(Hz)
41.6
VAS(l)
47.7
QTS
0.45
PWR(W)
1500
SPL(dB)
90.2
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41.6
Vas(l)
47.7
Qts
0.45
Qms
4.3
Qes
0.503
Bl(Tm)
32.3
Mms(gr)
281
Cms(mm/N)
0.052
Rms(kg/s)
17.081
Le(mH)
0
Re(Ohm)
7.1
Sd(sq.mm)
80400
Vd(l)
1.206
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1500
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.81
Total Diameter (mm)
0
Cutout Diameter (mm)
355
Mounting Depth (mm)
199
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
