Model

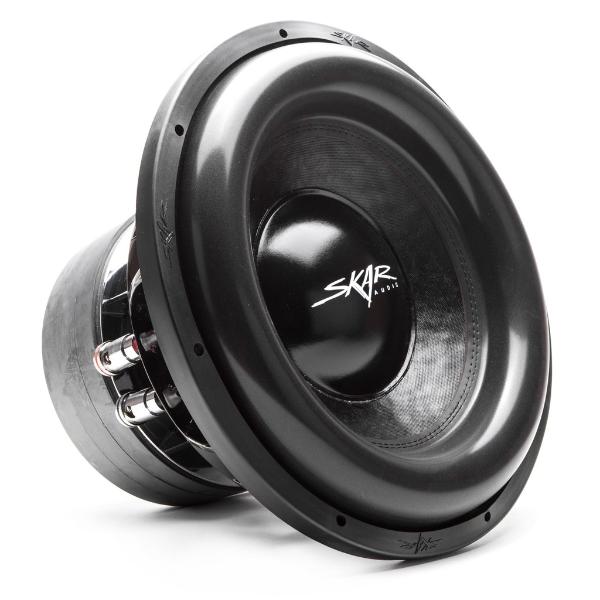

Skar DNR-15 D2
Rating
DIAM
15"
FS(Hz)
44
VAS(l)
14.4
QTS
0.9
PWR(W)
10000
SPL(dB)
82.8
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
44
Vas(l)
14.4
Qts
0.9
Qms
4.2
Qes
0.99
Bl(Tm)
14.7
Mms(gr)
770
Cms(mm/N)
0.017
Rms(kg/s)
50.66
Le(mH)
0
Re(Ohm)
1
Sd(sq.mm)
77228
Vd(l)
2.649
X-max(mm)
34
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
10000
RMS Power(W.)
5000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.12
Sensitivity(dB) 1-W
82.8
Sensitivity(dB) 2.8-V
91.8
Mounting Information
Speaker Displacement (l)
27.25
Total Diameter (mm)
397
Cutout Diameter (mm)
360
Mounting Depth (mm)
290
Magnet Diameter (mm)
249
Optimum Enclosures
Enclosures
Closed, BP4
