Model

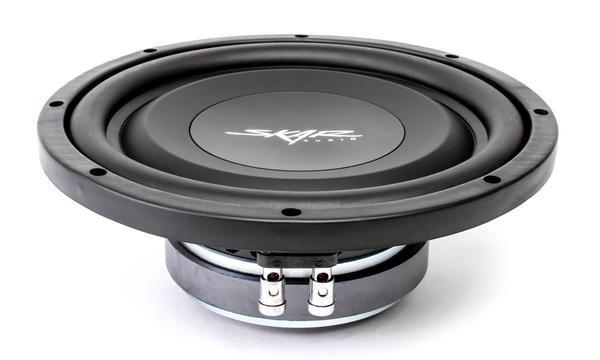

Skar EV-10 D2
Rating
DIAM
10"
FS(Hz)
51.1
VAS(l)
14.2
QTS
0.82
PWR(W)
400
SPL(dB)
84.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
51.1
Vas(l)
14.2
Qts
0.82
Qms
6.21
Qes
0.945
Bl(Tm)
13.1
Mms(gr)
121
Cms(mm/N)
0.08
Rms(kg/s)
6.271
Le(mH)
0
Re(Ohm)
4.2
Sd(sq.mm)
35377
Vd(l)
0.301
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
150
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1
Total Diameter (mm)
0
Cutout Diameter (mm)
233
Mounting Depth (mm)
86
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
