Model

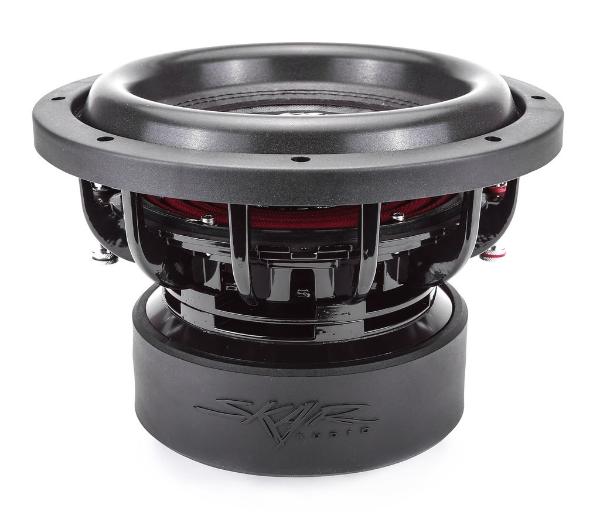

Skar EVL-10 D2
Rating
DIAM
10"
FS(Hz)
44
VAS(l)
6.8
QTS
0.59
PWR(W)
2000
SPL(dB)
81.3
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
44
Vas(l)
6.8
Qts
0.59
Qms
5.44
Qes
0.66
Bl(Tm)
14
Mms(gr)
259
Cms(mm/N)
0.051
Rms(kg/s)
13.142
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
31410
Vd(l)
0.754
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.248
Total Diameter (mm)
0
Cutout Diameter (mm)
241
Mounting Depth (mm)
181
Magnet Diameter (mm)
187
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
