Model

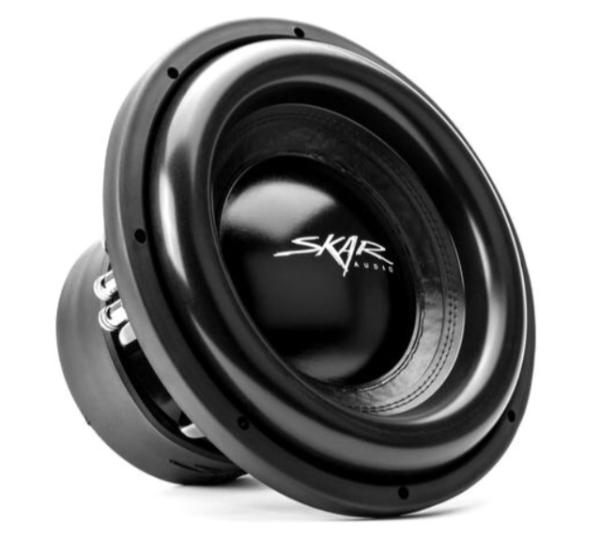

Skar EVL-12 D2
Rating
DIAM
12"
FS(Hz)
32.2
VAS(l)
19
QTS
0.53
PWR(W)
2500
SPL(dB)
85.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.2
Vas(l)
19
Qts
0.53
Qms
4.83
Qes
0.51
Bl(Tm)
13.5
Mms(gr)
368
Cms(mm/N)
0.06
Rms(kg/s)
15.404
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
47140
Vd(l)
1.104
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
89.3
Mounting Information
Speaker Displacement (l)
4.247
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
197
Magnet Diameter (mm)
187
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
