Model

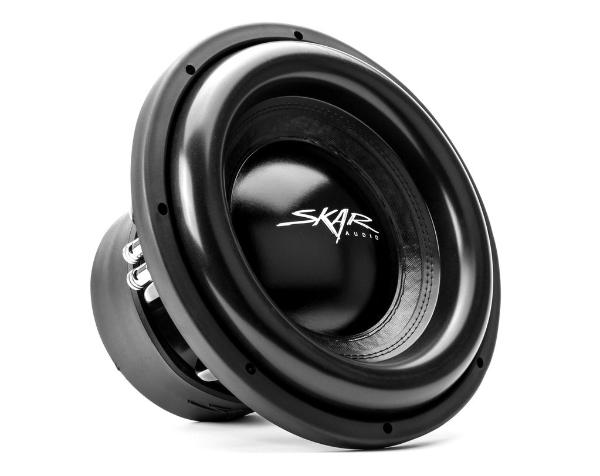

Skar EVL-12 D4
Rating
DIAM
12"
FS(Hz)
40
VAS(l)
18.2
QTS
0.65
PWR(W)
2500
SPL(dB)
83.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
18.2
Qts
0.65
Qms
5
Qes
0.76
Bl(Tm)
12.8
Mms(gr)
256
Cms(mm/N)
0.059
Rms(kg/s)
12.88
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
47140
Vd(l)
1.108
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.15
Sensitivity(dB) 1-W
83.7
Sensitivity(dB) 2.8-V
86.9
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
197
Magnet Diameter (mm)
187
Optimum Enclosures
Enclosures
Closed, BP4
