Model

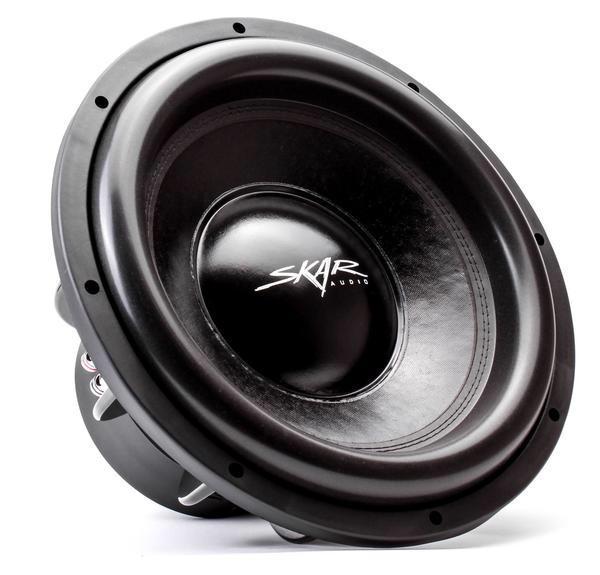

Skar EVL-15 D2
Rating
DIAM
15"
FS(Hz)
35
VAS(l)
46
QTS
0.63
PWR(W)
2500
SPL(dB)
86.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
46
Qts
0.63
Qms
4.6
Qes
0.73
Bl(Tm)
21
Mms(gr)
390
Cms(mm/N)
0.053
Rms(kg/s)
18.482
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
78216
Vd(l)
1.877
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
92.7
Mounting Information
Speaker Displacement (l)
4.247
Total Diameter (mm)
394
Cutout Diameter (mm)
354
Mounting Depth (mm)
220
Magnet Diameter (mm)
187
Optimum Enclosures
Enclosures
Closed, BP4
