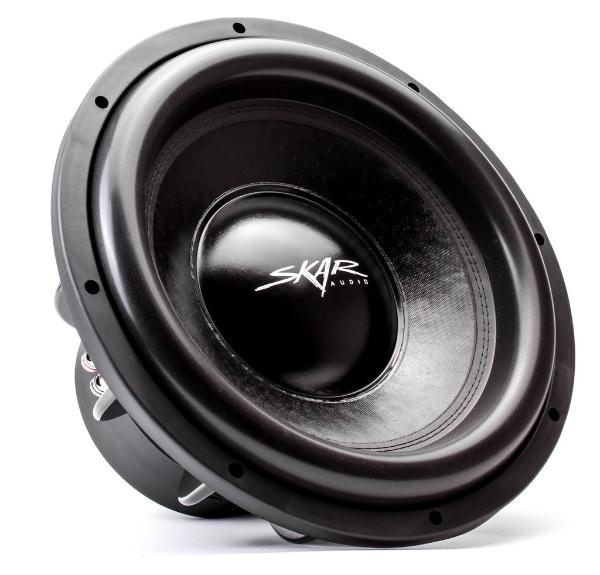

Skar  EVL-15 D4
Skar  EVL-15 D4
Model

Skar EVL-15 D4

Rating
DIAM
15"
FS(Hz)
37
VAS(l)
41.4
QTS
0.79
PWR(W)
2500
SPL(dB)
85.5
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
37
Vas(l)
41.4
Qts
0.79
Qms
6.09
Qes
0.91
Bl(Tm)
13.8
Mms(gr)
325
Cms(mm/N)
0.057
Rms(kg/s)
12.387
Le(mH)
0
Re(Ohm)
2.3
Sd(sq.mm)
77930
Vd(l)
1.87
X-max(mm)
24
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
90.9

Mounting Information

Speaker Displacement (l)
4.26
Total Diameter (mm)
0
Cutout Diameter (mm)
354
Mounting Depth (mm)
220
Magnet Diameter (mm)
187

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
