Model

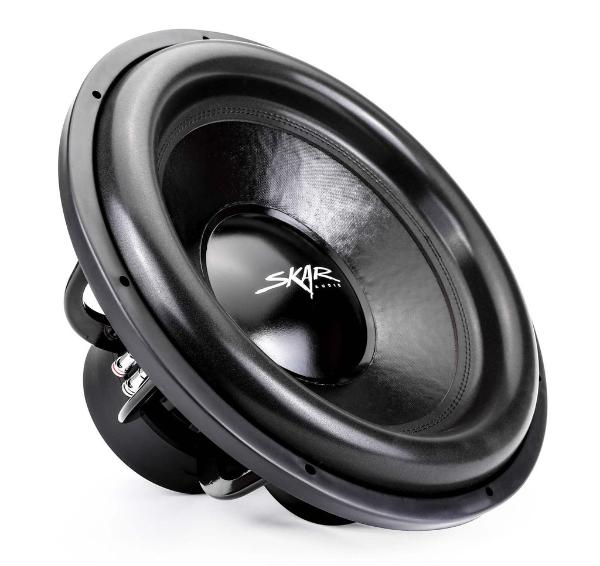

Skar EVL-18 D2
Rating
DIAM
18"
FS(Hz)
31.2
VAS(l)
81
QTS
0.42
PWR(W)
2500
SPL(dB)
88
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.2
Vas(l)
81
Qts
0.42
Qms
5.65
Qes
0.44
Bl(Tm)
20
Mms(gr)
424
Cms(mm/N)
0.042
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
116406
Vd(l)
2.8
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
469
Cutout Diameter (mm)
425
Mounting Depth (mm)
257
Magnet Diameter (mm)
187
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
