Model

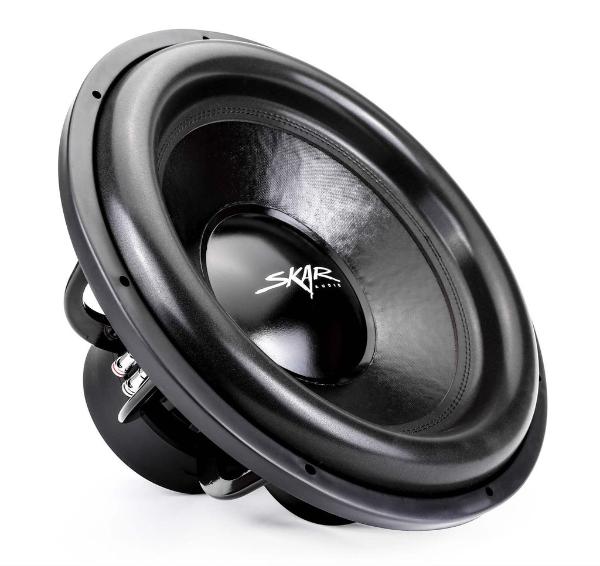

Skar EVL-18 D4
Rating
DIAM
18"
FS(Hz)
38
VAS(l)
78
QTS
1.03
PWR(W)
2500
SPL(dB)
87
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
78
Qts
1.03
Qms
5.41
Qes
1.27
Bl(Tm)
12.7
Mms(gr)
429
Cms(mm/N)
0.041
Rms(kg/s)
18.93
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
116410
Vd(l)
2.8
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
433
Mounting Depth (mm)
254
Magnet Diameter (mm)
187
Optimum Enclosures
Enclosures
Closed, BP4
