Model

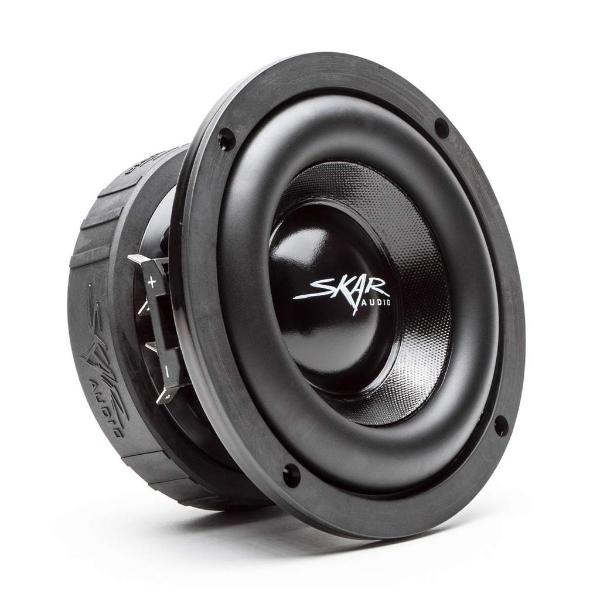

Skar EVL-65 D2
Rating
DIAM
7"
FS(Hz)
61
VAS(l)
2.3
QTS
0.39
PWR(W)
400
SPL(dB)
82.7
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
61
Vas(l)
2.3
Qts
0.39
Qms
4.5
Qes
0.43
Bl(Tm)
13
Mms(gr)
54
Cms(mm/N)
0.126
Rms(kg/s)
4.57
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
11345
Vd(l)
0.071
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.12
Sensitivity(dB) 1-W
82.7
Sensitivity(dB) 2.8-V
89.2
Mounting Information
Speaker Displacement (l)
0.54
Total Diameter (mm)
174
Cutout Diameter (mm)
148
Mounting Depth (mm)
90
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Vented, BP6
