Model

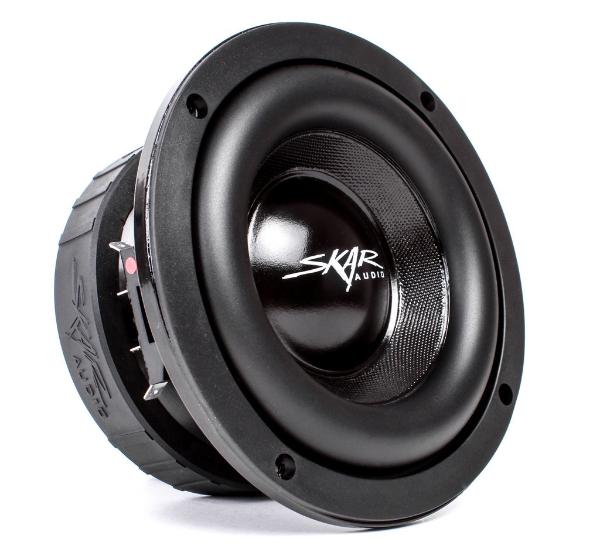

Skar EVL-65 D4
Rating
DIAM
7"
FS(Hz)
64
VAS(l)
2.2
QTS
0.53
PWR(W)
400
SPL(dB)
81.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
64
Vas(l)
2.2
Qts
0.53
Qms
4.6
Qes
0.6
Bl(Tm)
15.4
Mms(gr)
49
Cms(mm/N)
0.126
Rms(kg/s)
4.292
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
11096
Vd(l)
0.069
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.54
Total Diameter (mm)
0
Cutout Diameter (mm)
146
Mounting Depth (mm)
89
Magnet Diameter (mm)
138
Optimum Enclosures
Enclosures
Vented, BP6
