Model

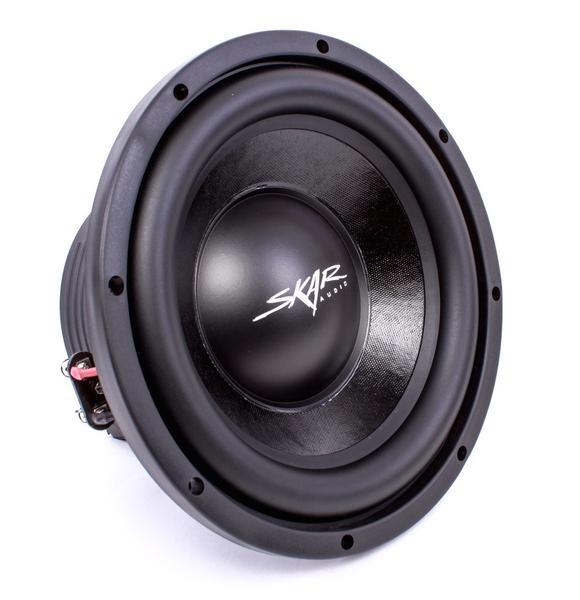

Skar IVX-10V2 D4
Rating
DIAM
10"
FS(Hz)
45
VAS(l)
18
QTS
0.38
PWR(W)
800
SPL(dB)
87.4
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
18
Qts
0.38
Qms
2.3
Qes
0.455
Bl(Tm)
19.9
Mms(gr)
104
Cms(mm/N)
0.12
Rms(kg/s)
16.842
Le(mH)
0
Re(Ohm)
6.1
Sd(sq.mm)
33000
Vd(l)
0.363
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.83
Total Diameter (mm)
0
Cutout Diameter (mm)
281
Mounting Depth (mm)
95
Magnet Diameter (mm)
160
Optimum Enclosures
Enclosures
Vented, BP6
