Model

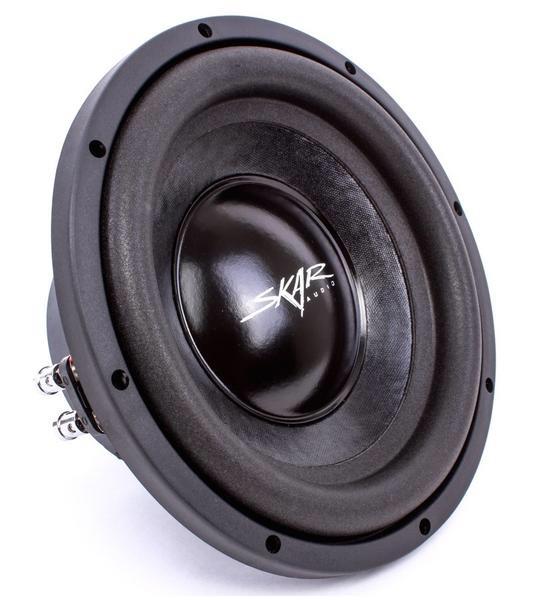

Skar IX-10 D4
Rating
DIAM
10"
FS(Hz)
37.4
VAS(l)
30.9
QTS
0.72
PWR(W)
400
SPL(dB)
87
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37.4
Vas(l)
30.9
Qts
0.72
Qms
4.9
Qes
0.83
Bl(Tm)
14.1
Mms(gr)
77
Cms(mm/N)
0.235
Rms(kg/s)
3.693
Le(mH)
0
Re(Ohm)
4.1
Sd(sq.mm)
30534
Vd(l)
0.235
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.019
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
123
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, BP4
