Model

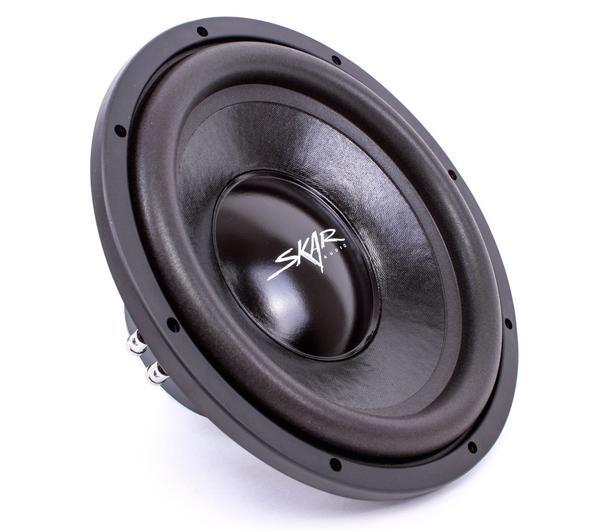

Skar IX-12 D2
Rating
DIAM
12"
FS(Hz)
35.4
VAS(l)
66.9
QTS
0.61
PWR(W)
500
SPL(dB)
88.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.4
Vas(l)
66.9
Qts
0.61
Qms
6.14
Qes
0.677
Bl(Tm)
11.9
Mms(gr)
106
Cms(mm/N)
0.19
Rms(kg/s)
3.9
Le(mH)
0
Re(Ohm)
4.1
Sd(sq.mm)
49831
Vd(l)
0.349
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.444
Total Diameter (mm)
0
Cutout Diameter (mm)
290
Mounting Depth (mm)
135
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, BP4
