Model

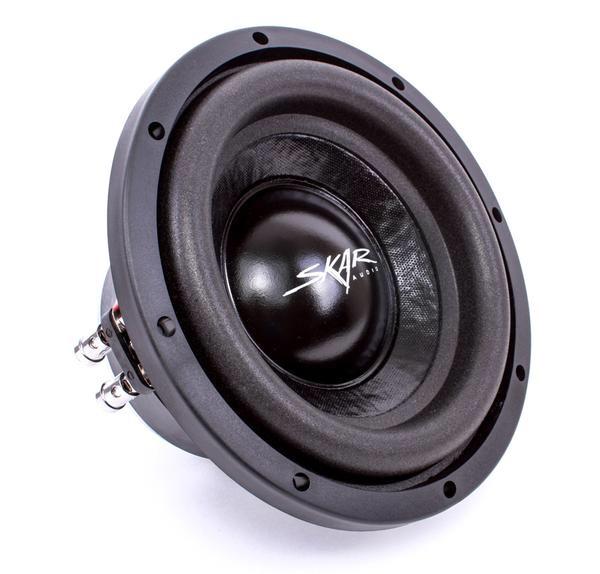

Skar IX-8 D2
Rating
DIAM
8"
FS(Hz)
48.3
VAS(l)
8.7
QTS
0.66
PWR(W)
300
SPL(dB)
83
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
48.3
Vas(l)
8.7
Qts
0.66
Qms
5.09
Qes
0.758
Bl(Tm)
10.6
Mms(gr)
72
Cms(mm/N)
0.15
Rms(kg/s)
4.2
Le(mH)
0
Re(Ohm)
4.1
Sd(sq.mm)
20214
Vd(l)
0.141
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.481
Total Diameter (mm)
0
Cutout Diameter (mm)
182
Mounting Depth (mm)
106
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
