Model

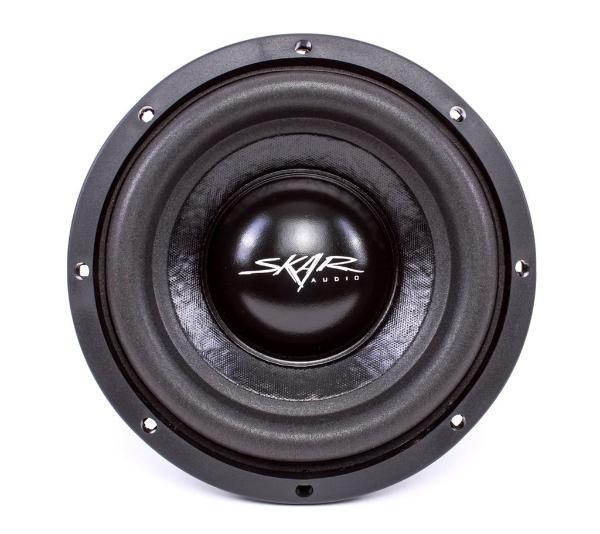

Skar IX-8 D4
Rating
DIAM
8"
FS(Hz)
51.1
VAS(l)
7.8
QTS
0.64
PWR(W)
300
SPL(dB)
83.3
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
51.1
Vas(l)
7.8
Qts
0.64
Qms
4.29
Qes
0.75
Bl(Tm)
13.8
Mms(gr)
69
Cms(mm/N)
0.14
Rms(kg/s)
5.3
Le(mH)
0
Re(Ohm)
7.1
Sd(sq.mm)
19820
Vd(l)
0.139
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.481
Total Diameter (mm)
0
Cutout Diameter (mm)
182
Mounting Depth (mm)
106
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
