Model

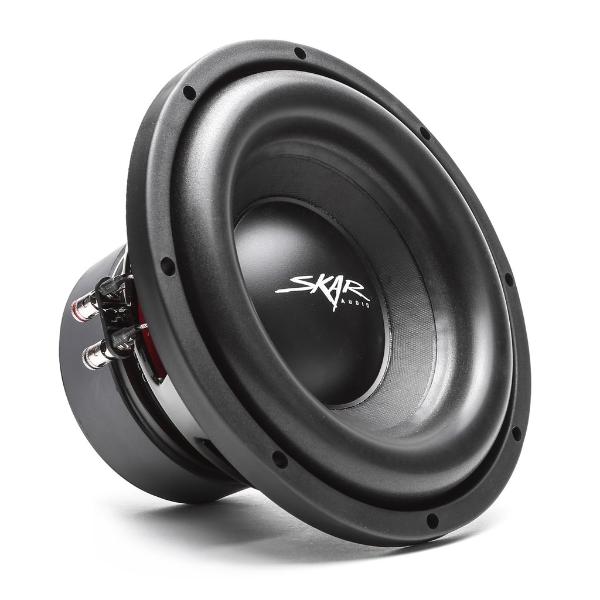

Skar SDR-10 D2
Rating
DIAM
10"
FS(Hz)
39
VAS(l)
10.8
QTS
0.58
PWR(W)
1200
SPL(dB)
81.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
10.8
Qts
0.58
Qms
6.8
Qes
0.63
Bl(Tm)
18.4
Mms(gr)
214
Cms(mm/N)
0.078
Rms(kg/s)
7.77
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
31318
Vd(l)
0.423
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
81.9
Sensitivity(dB) 2.8-V
88.2
Mounting Information
Speaker Displacement (l)
1.16
Total Diameter (mm)
254
Cutout Diameter (mm)
227
Mounting Depth (mm)
154
Magnet Diameter (mm)
152
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
