Model

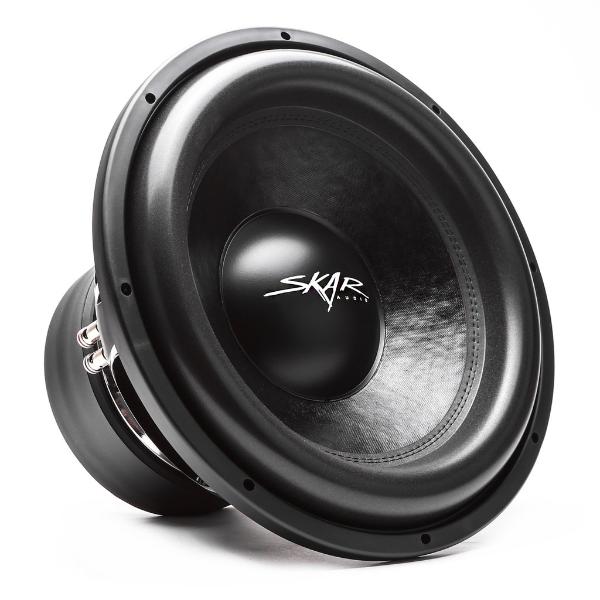

Skar VXF-15 D2
Rating
DIAM
15"
FS(Hz)
31.4
VAS(l)
76.8
QTS
0.36
PWR(W)
3000
SPL(dB)
89.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.4
Vas(l)
76.8
Qts
0.36
Qms
4.74
Qes
0.38
Bl(Tm)
24.9
Mms(gr)
303
Cms(mm/N)
0.08
Rms(kg/s)
12.624
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
82273
Vd(l)
2.468
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.6
Sensitivity(dB) 1-W
89.8
Sensitivity(dB) 2.8-V
92.8
Mounting Information
Speaker Displacement (l)
4.53
Total Diameter (mm)
396
Cutout Diameter (mm)
360
Mounting Depth (mm)
251
Magnet Diameter (mm)
219
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
