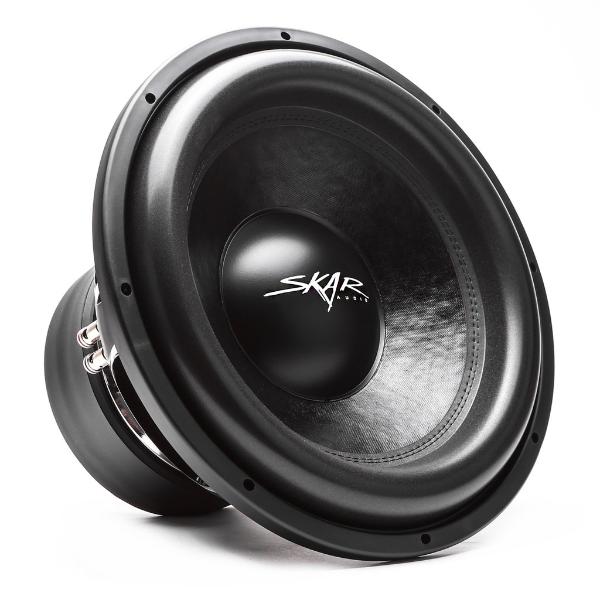

Skar  VXF-15 D4
Skar  VXF-15 D4
Model

Skar VXF-15 D4

Rating
DIAM
15"
FS(Hz)
35.4
VAS(l)
47.7
QTS
0.4
PWR(W)
2500
SPL(dB)
88.7
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
35.4
Vas(l)
47.7
Qts
0.4
Qms
4.8
Qes
0.437
Bl(Tm)
39.1
Mms(gr)
384
Cms(mm/N)
0.053
Rms(kg/s)
17.88
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
77930
Vd(l)
2.338
X-max(mm)
30
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
2500
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.47
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
91.7

Mounting Information

Speaker Displacement (l)
4.53
Total Diameter (mm)
406
Cutout Diameter (mm)
360
Mounting Depth (mm)
251
Magnet Diameter (mm)
219

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
