Model

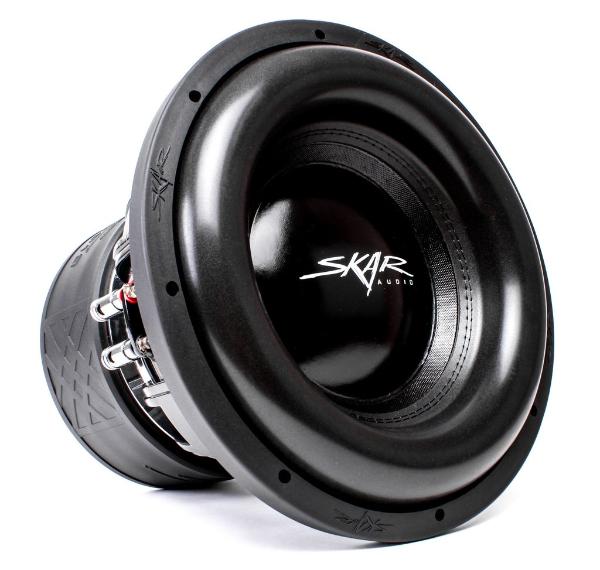

Skar ZVX -12V2 D1
Rating
DIAM
12"
FS(Hz)
51
VAS(l)
24.4
QTS
0.41
PWR(W)
3000
SPL(dB)
90.5
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
51
Vas(l)
24.4
Qts
0.41
Qms
3.8
Qes
0.44
Bl(Tm)
21.4
Mms(gr)
350
Cms(mm/N)
0.028
Rms(kg/s)
29.514
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
51000
Vd(l)
1.479
X-max(mm)
29
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
0
Cutout Diameter (mm)
277
Mounting Depth (mm)
216
Magnet Diameter (mm)
211
Optimum Enclosures
Enclosures
Vented, BP6
