Skar  ZVX-15V2 D2
Skar  ZVX-15V2 D2
Model

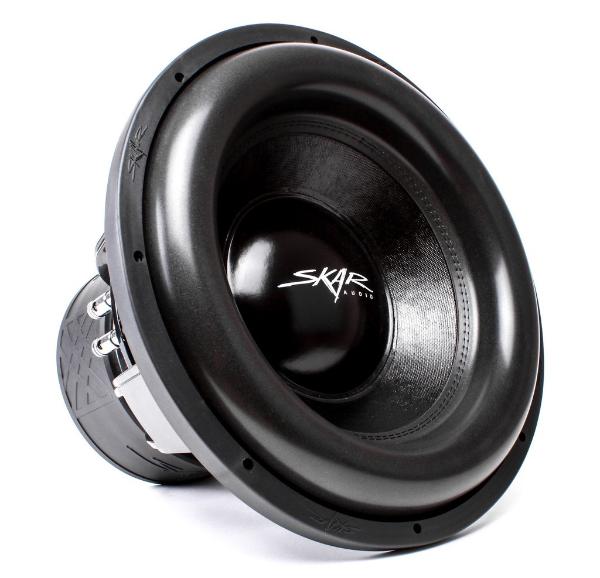

Skar ZVX-15V2 D2

Rating
DIAM
15"
FS(Hz)
39
VAS(l)
58.9
QTS
0.52
PWR(W)
3000
SPL(dB)
89.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
39
Vas(l)
58.9
Qts
0.52
Qms
2.83
Qes
0.637
Bl(Tm)
21.1
Mms(gr)
495
Cms(mm/N)
0.034
Rms(kg/s)
42.86
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
75400
Vd(l)
2.187
X-max(mm)
29
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.53
Sensitivity(dB) 1-W
89.2
Sensitivity(dB) 2.8-V
92.7

Mounting Information

Speaker Displacement (l)
4.81
Total Diameter (mm)
0
Cutout Diameter (mm)
356
Mounting Depth (mm)
287
Magnet Diameter (mm)
211

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
