Skar  ZVX-18V2 D2
Skar  ZVX-18V2 D2
Model

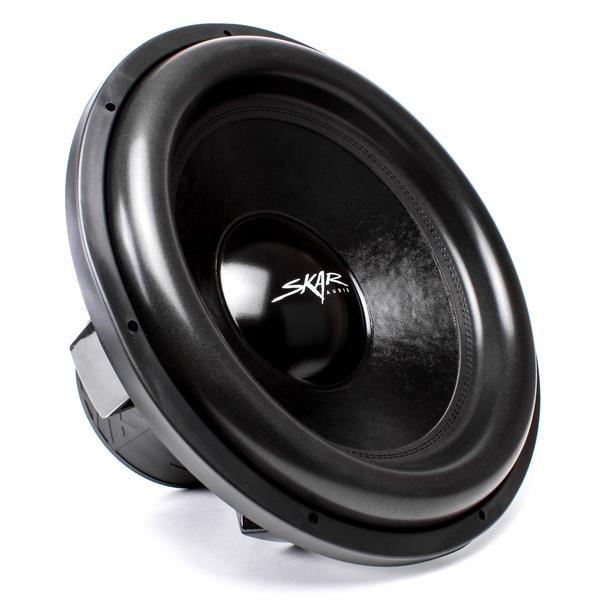

Skar ZVX-18V2 D2

Rating
DIAM
18"
FS(Hz)
27.4
VAS(l)
136.2
QTS
0.49
PWR(W)
3000
SPL(dB)
89
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
27.4
Vas(l)
136.2
Qts
0.49
Qms
3.6
Qes
0.54
Bl(Tm)
20.6
Mms(gr)
489
Cms(mm/N)
0.07
Rms(kg/s)
51.57
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
116400
Vd(l)
3.376
X-max(mm)
29
X-mech(mm)
0

General Parameters

Diameter (inch)
18
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
5.66
Total Diameter (mm)
0
Cutout Diameter (mm)
419
Mounting Depth (mm)
274
Magnet Diameter (mm)
211

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
