Model

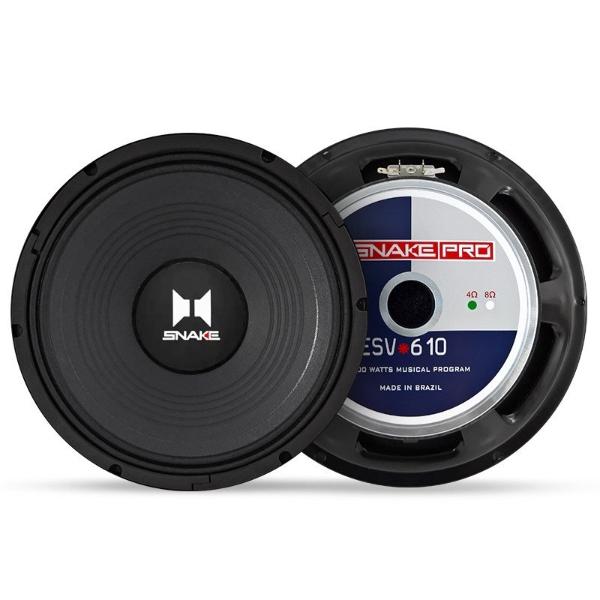

Snake Pro ESV 610
Rating
DIAM
10"
FS(Hz)
74
VAS(l)
26.95
QTS
0.42
PWR(W)
600
SPL(dB)
95.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
74
Vas(l)
26.9
Qts
0.418
Qms
6.625
Qes
0.446
Bl(Tm)
12.7
Mms(gr)
31
Cms(mm/N)
0.15
Rms(kg/s)
2.162
Le(mH)
0
Re(Ohm)
5
Sd(sq.mm)
36400
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.36
Sensitivity(dB) 1-W
95.7
Sensitivity(dB) 2.8-V
97.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
