Model

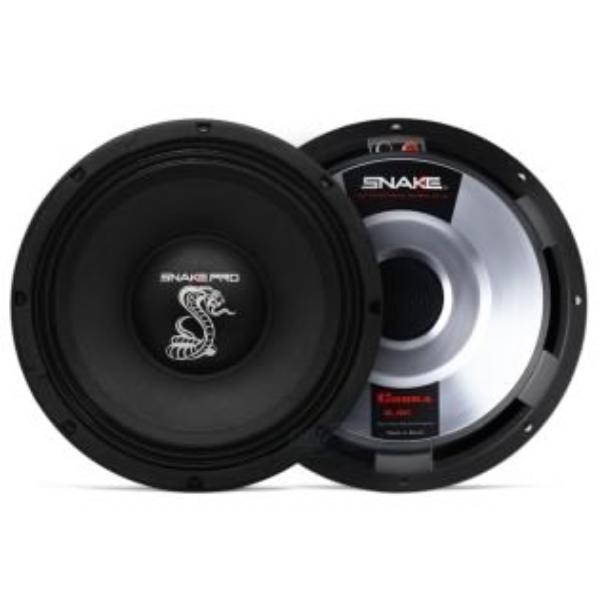

Snake SNAKEPRO 12 6.4K
Rating
DIAM
12"
FS(Hz)
100.1
VAS(l)
10.3
QTS
0.58
PWR(W)
6400
SPL(dB)
95.5
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
100.1
Vas(l)
10.3
Qts
0.583
Qms
11.012
Qes
0.62
Bl(Tm)
16.7
Mms(gr)
17
Cms(mm/N)
0.152
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2.8
Sd(sq.mm)
53000
Vd(l)
0.35
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
6400
RMS Power(W.)
3200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
138
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
