Model

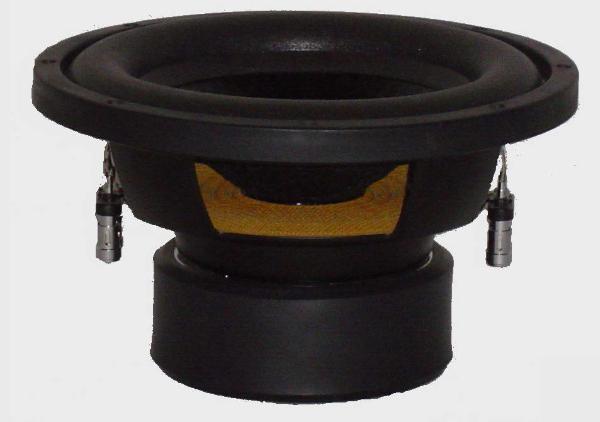

Solar Audio Technologies SSW-HX 12(HIGH XCURSION)
Rating
DIAM
12"
FS(Hz)
33.3
VAS(l)
57.5
QTS
0.45
PWR(W)
700
SPL(dB)
88.3
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.3
Vas(l)
57.5
Qts
0.446
Qms
5.582
Qes
0.484
Bl(Tm)
9.7
Mms(gr)
136
Cms(mm/N)
0.168
Rms(kg/s)
0.25
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
49146
Vd(l)
0.665
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
