Model

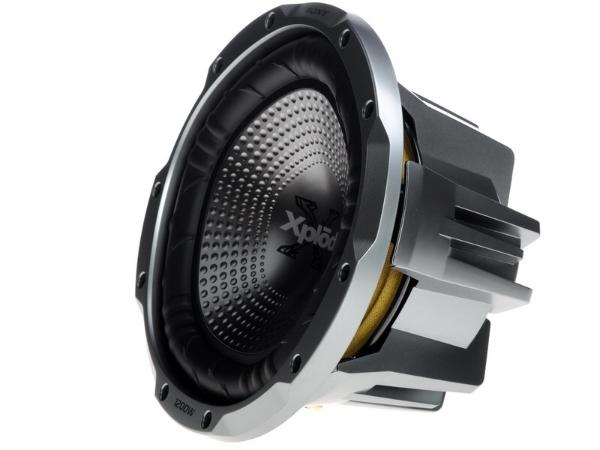

Sony XS-GTR100L
Rating
DIAM
10"
FS(Hz)
40
VAS(l)
27
QTS
0.56
PWR(W)
1200
SPL(dB)
86.2
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
27
Qts
0.56
Qms
4.65
Qes
0.637
Bl(Tm)
11.5
Mms(gr)
112
Cms(mm/N)
0.141
Rms(kg/s)
6.053
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
36745
Vd(l)
0.276
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
330
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
