Model

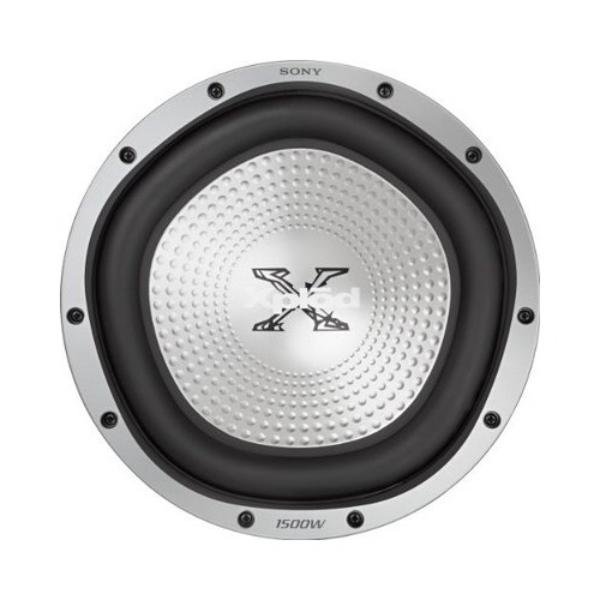

Sony XS-GTR101L
Rating
DIAM
10"
FS(Hz)
44
VAS(l)
21
QTS
0.72
PWR(W)
1700
SPL(dB)
85.4
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
44
Vas(l)
21
Qts
0.72
Qms
9.3
Qes
0.78
Bl(Tm)
10.5
Mms(gr)
107
Cms(mm/N)
0.122
Rms(kg/s)
3.181
Le(mH)
0
Re(Ohm)
2.9
Sd(sq.mm)
34838
Vd(l)
0.24
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1700
RMS Power(W.)
370
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.991
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
153
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
