Model

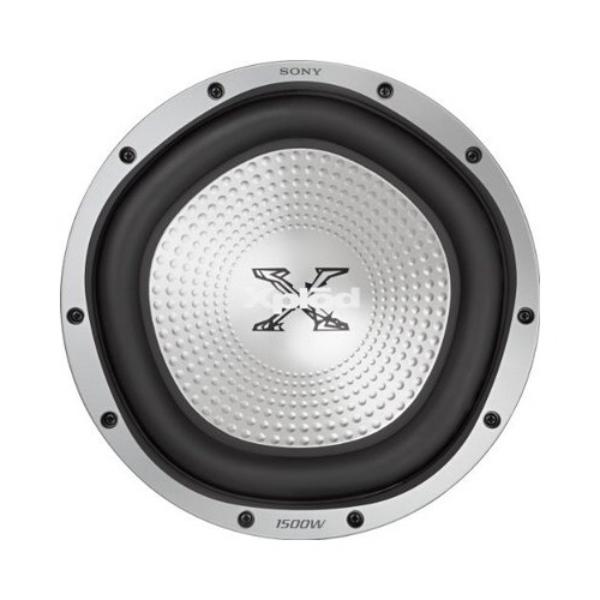

Sony XS-GTR121L
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
50
QTS
0.46
PWR(W)
2000
SPL(dB)
88.3
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
50
Qts
0.46
Qms
7.9
Qes
0.488
Bl(Tm)
15.2
Mms(gr)
146
Cms(mm/N)
0.142
Rms(kg/s)
4.064
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
49827
Vd(l)
0.419
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.5
Total Diameter (mm)
315
Cutout Diameter (mm)
281
Mounting Depth (mm)
137
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
