Model

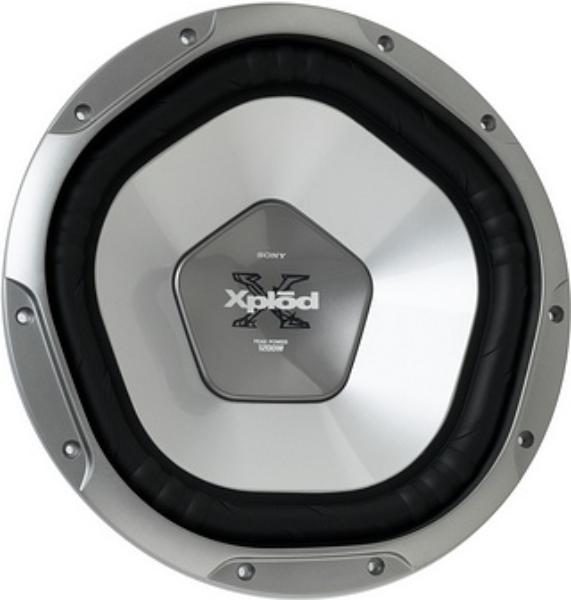

Sony XS-L121P5S
Rating
DIAM
12"
FS(Hz)
22.6
VAS(l)
102.1
QTS
0.51
PWR(W)
1200
SPL(dB)
89
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
22.6
Vas(l)
102.1
Qts
0.51
Qms
5.59
Qes
0.55
Bl(Tm)
12.5
Mms(gr)
183
Cms(mm/N)
0.271
Rms(kg/s)
4.66
Le(mH)
1.4
Re(Ohm)
3.3
Sd(sq.mm)
51541
Vd(l)
0.593
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
89
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
328
Cutout Diameter (mm)
277
Mounting Depth (mm)
161
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
