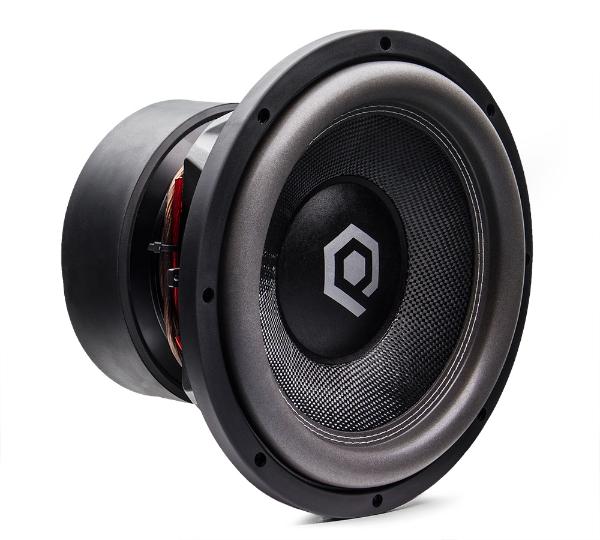

Soundqubed  HDC3.112 D2
Soundqubed  HDC3.112 D2
Model

Soundqubed HDC3.112 D2

Rating
DIAM
12"
FS(Hz)
43
VAS(l)
20.3
QTS
0.38
PWR(W)
4500
SPL(dB)
88
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
43
Vas(l)
20.3
Qts
0.375
Qms
7.313
Qes
0.395
Bl(Tm)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Mms(gr)
0
Vd(l)
0
Sd(sq.mm)
0
X-max(mm)
18
X-mech(mm)
0
Re(Ohm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
4500
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
3.7
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
203
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
