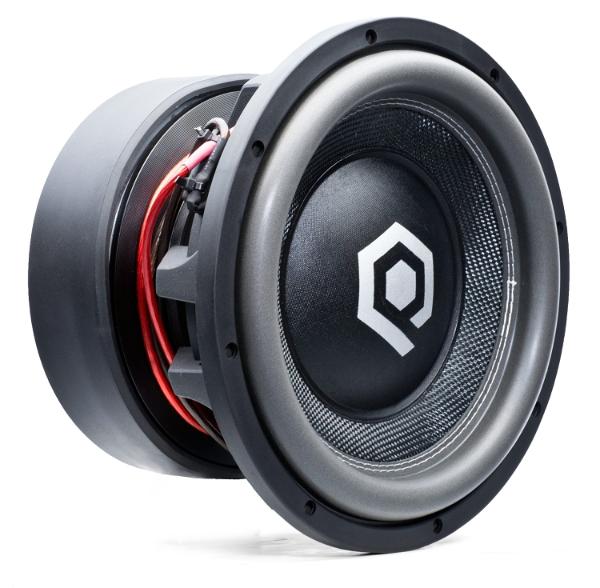

Soundqubed  HDC412-D1-A
Soundqubed  HDC412-D1-A
Model

Soundqubed HDC412-D1-A

Rating
DIAM
12"
FS(Hz)
38.4
VAS(l)
22.2
QTS
0.53
PWR(W)
6000
SPL(dB)
85
IMP(Ohm)
1x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
38.4
Vas(l)
22.2
Qts
0.531
Qms
4
Qes
0.612
Bl(Tm)
9.9
Mms(gr)
309
Cms(mm/N)
0.056
Rms(kg/s)
18.601
Le(mH)
0
Re(Ohm)
0.8
Sd(sq.mm)
52869
Vd(l)
2.115
X-max(mm)
40
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
6000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
5.4
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
200
Magnet Diameter (mm)
10

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
