Model

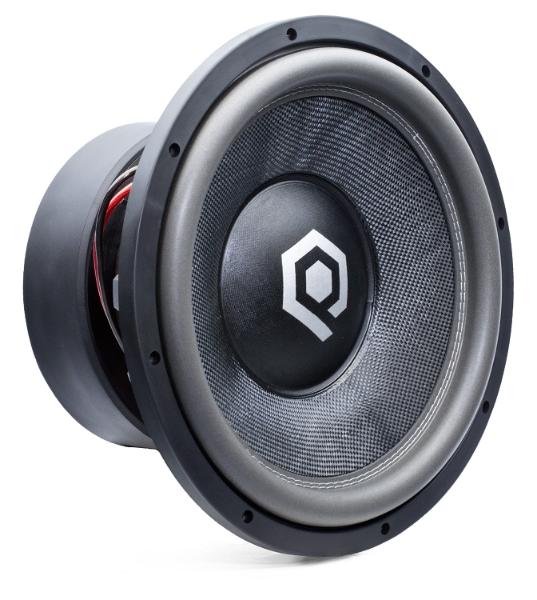

Soundqubed HDC415-D1-A
Rating
DIAM
15"
FS(Hz)
35
VAS(l)
64.2
QTS
0.6
PWR(W)
6000
SPL(dB)
87.7
IMP(Ohm)
1x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
64.2
Qts
0.604
Qms
4.072
Qes
0.709
Bl(Tm)
9.3
Mms(gr)
332
Cms(mm/N)
0.062
Rms(kg/s)
17.914
Le(mH)
0
Re(Ohm)
0.8
Sd(sq.mm)
85460
Vd(l)
3.418
X-max(mm)
40
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
6000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
7.08
Total Diameter (mm)
0
Cutout Diameter (mm)
349
Mounting Depth (mm)
206
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
