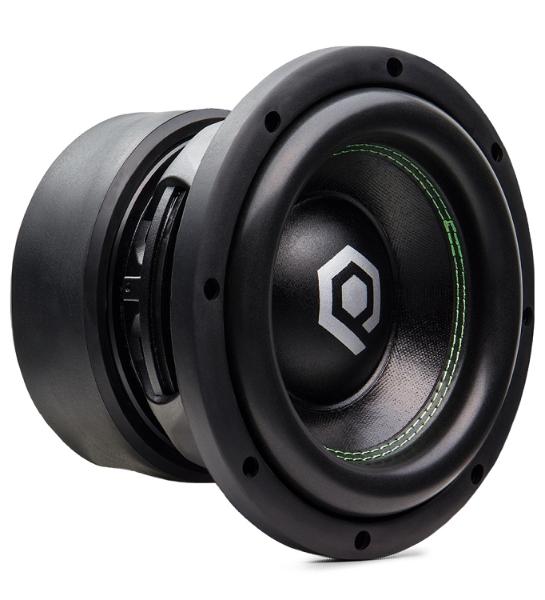

Soundqubed  HDS2.108 D1
Soundqubed  HDS2.108 D1
Model

Soundqubed HDS2.108 D1

Rating
DIAM
8"
FS(Hz)
37.7
VAS(l)
6.9
QTS
0.53
PWR(W)
1200
SPL(dB)
79.7
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
37.7
Vas(l)
6.9
Qts
0.532
Qms
3.939
Qes
0.615
Bl(Tm)
9.5
Mms(gr)
165
Cms(mm/N)
0.108
Rms(kg/s)
9.941
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
21290
Vd(l)
0.282
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
8
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
79.7
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.7
Total Diameter (mm)
0
Cutout Diameter (mm)
187
Mounting Depth (mm)
140
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
