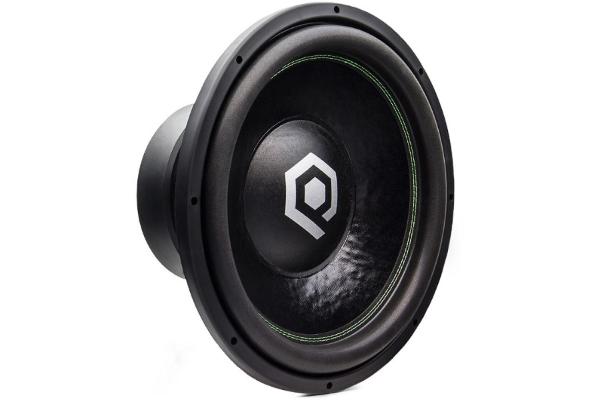

Soundqubed  HDS2.112 D2
Soundqubed  HDS2.112 D2
Model

Soundqubed HDS2.112 D2

Rating
DIAM
12"
FS(Hz)
33.6
VAS(l)
65
QTS
0.5
PWR(W)
1200
SPL(dB)
88.3
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
33.6
Vas(l)
65
Qts
0.5
Qms
5.051
Qes
0.555
Bl(Tm)
0
Mms(gr)
137
Cms(mm/N)
0.163
Rms(kg/s)
5.735
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
53026
Vd(l)
0.703
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
168
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
