Model

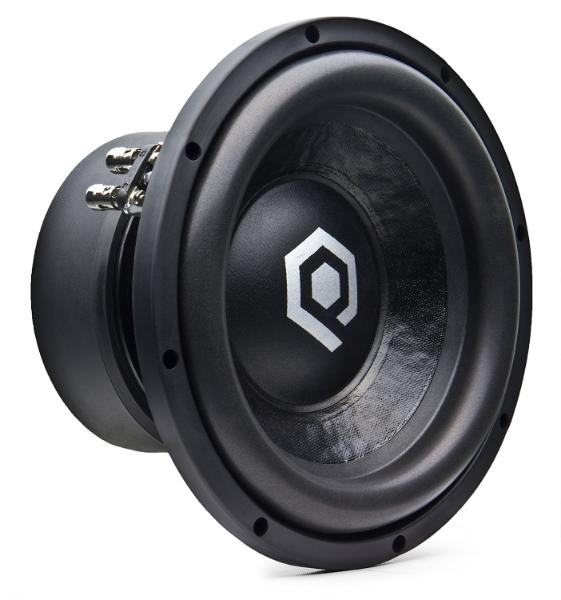

Soundqubed HDS210 D4
Rating
DIAM
10"
FS(Hz)
37
VAS(l)
12.1
QTS
0.56
PWR(W)
1200
SPL(dB)
81.8
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
12.1
Qts
0.562
Qms
6.109
Qes
0.619
Bl(Tm)
25
Mms(gr)
227
Cms(mm/N)
0.082
Rms(kg/s)
8.626
Le(mH)
0
Re(Ohm)
7.4
Sd(sq.mm)
32189
Vd(l)
0.427
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.7
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
159
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
