Model

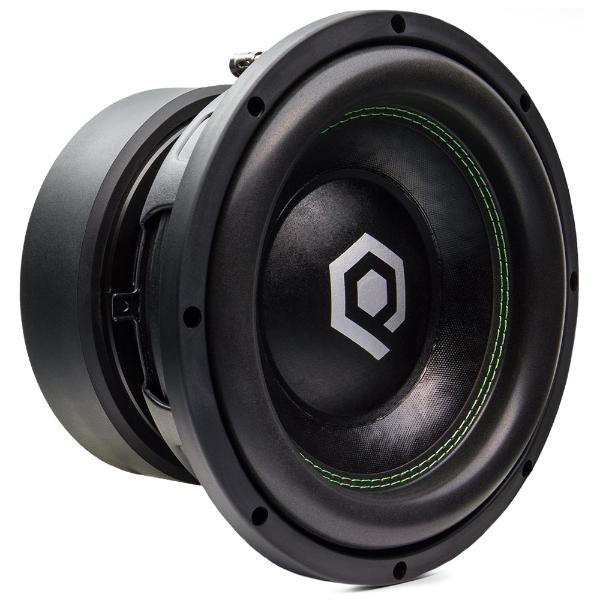

Soundqubed HDS3.110 D2
Rating
DIAM
10"
FS(Hz)
37
VAS(l)
8.3
QTS
0.56
PWR(W)
2400
SPL(dB)
80.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
8.3
Qts
0.561
Qms
6.869
Qes
0.611
Bl(Tm)
18.5
Mms(gr)
236
Cms(mm/N)
0.079
Rms(kg/s)
7.977
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
27263
Vd(l)
0.382
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
80.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
